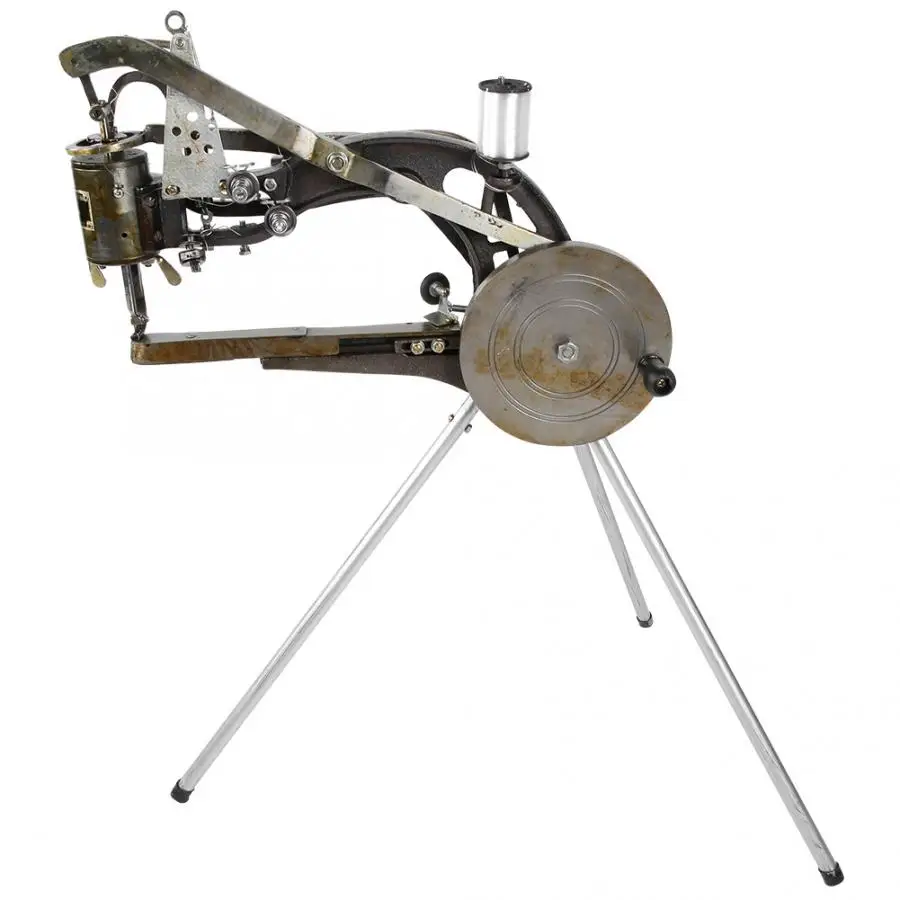

8 подшипниковая нейлоновая хлопковая нить для ремонта обуви, ручная обувная швейная машина, электрическая ручная обувная швейная машина s

Описание

8 подшипниковая нейлоновая хлопковая нить для ремонта обуви, ручная обувная швейная машина

Особенности:

Хорошая производительность и высокая эффективность, можно использовать нейлоновую нить, хлопковую нить, шелковую нить и доску с двойной иглой. Машина может сшить мужские и женские ботинки, резиновую обувь, кожаные туфли, кроссовки, высокие каблуки, дождевики, кожаные сумки, тканевые сумки и кожаные изделия. Структура проста и эффективна. Нажимная пластина: вы можете регулировать герметичность верхней нити. Игольчатый патрон и лапка: игольчатый Патрон имеет функцию фиксации иглы. Прижимная лапка имеет паз на игле. Игольчатый паз должен быть снаружи, чтобы избежать разъединения. Намоточная машина: использованная катушка может быть размещена здесь. Ручная машина для ремонта обуви, более профессиональная, более эффективная, более раздельная для вашей работы. Прижимной ножной ключ: Поднимите прижимную лапку вверх и потяните прижимную лапку, чтобы начать работу. Ручная рукоятка: при работе не трясите ее, чтобы нить не была завязана внутри! Регулировка расстояния иглы: поверните винт вверх и вниз, чтобы отрегулировать длину стежка. Универсальный ключ: вы можете настроить свой рабочий путь в любое время, вращая на 360 градусов. The difference between 4-axis and 8-axis is that the number of bearings added to the rotating part is different. The more bearings there are, the less likely they are to wear out.

Specification:
Material:Iron
Color:As shown in the picture.

Package List:
1 x Manual Shoe Sewing Machine
1 x Bobbin
1 x Tripod Stand
1 set of needle
1 x Coil(Random Black&White)
1 x Screwdriver(Random color)
1 x Guide Tray
1 x Connecting Rod

1. Use and maintenance:
The active part of the shoe-removing machine needs to be refueled once a day to ensure that the machine is running lightly and without noise. In particular, the must be changed once, and the oil should be added once to avoid stem thread and easy wear, improve work efficiency and extend service life.

2. Preparation before operation:
Pull up the presser foot to avoid friction between the presser foot and the needle plate.
Check the fastening of the fixing screws of each part.
Each part of the fuel point plus lubricants.
Shake the guide plate without any clicks.

3. Threading and lead:
Take the bobbin case and the bobbin: Swing the guide plate, raise the needle to the highest position, use the tweezers to remove the , lift and push the upper needle plate, and use the tweezers to remove the .
Bobbin winding:
Pull down the winding machine, pull out the thread around the bobbin and insert it into the bobbin for several weeks. Shake the guide to be wound around the bobbin and pull it back.
Install the bobbin first pass the bobbin thread through the wire hole of the , and insert the bobbin into the , then thread the thread to the upper thread hole, and pull the thread to move.
The position of the is the hand guide. When the needle is about to rise, the tail should be aligned with the needle slot, and the thread is pulled out 2-3 inches long. Press the needle plate in the half-moon slot of the , then close the upper needle plate. Shake the large plate to bring the bottom thread to the needle plate. If the position of the is placed incorrectly, the bottom thread cannot be taken at the same time.
Wear the upper thread: Shake the guide, raise the needle to the highest position, and lower the presser foot. Pull the wire end in the online roll, pass through the middle shaft wrap spring, pass the wire clamp and the wire frame, pass through the wire spring and the wire pick, enter the needle bar hole, and then pull the wire through the pin hole to pull out the wire head 2-3 Inch.
Pull the upper thread of the upper thread with left hand(not too tight), use the right hand to shake the guide, so that the needle thread passes through the hole of the needle board to draw the bottom line, and the bottom line together makes the machine press the foot gap to the left rear.

4.The relationship between the bottom line and the quality of sewing:
1. Identification of stitches.
2. Adjust the pressure of the bottom line of the surface. Rotate the upper thread tightly. When the use time is too long, the bottom line will appear too fast. At this time, the thread can be threaded or the bobbin can be changed. The bottom line is tight and the thread take-up lever will be taken. The fixing screw is relaxed, the needle picking rod is pushed backwards, and then the rotation of the bobbin is checked for flexibility. The sanding of the threading nut is used to tighten the adjustment of the stitch length of the crimping nut.

5. Adjusting the stitch length:
Since the stitch length must be adjusted due to the different sewing materials, when the stitch length is selected, the stitch length screw only needs to be loosened. When the stitch length is short, and the upward movement is reversed, it is sufficient. 6. Adjustment of presser foot pressure
When the seam is thickened, the pressure must be increased. At this time, the presser spring nut can be tightened to increase the tension of the tension spring, which increases the pressure of the presser foot, and vice versa.

6. Adjustment of presser foot pressure:
When the seam is thickened, the pressure must be increased. At this time, the presser spring nut can be tightened to increase the tension of the tension spring, which increases the pressure of the presser foot, and vice versa.

7. Handling of the needle and the matching of the sewing material:
1. Turn the guide disc to raise the needle bar to the highest position, loosen the needle collet screw, remove the old needle, insert the new needle flat into the groove of the needle bar, and when the needle touches the needle positioning position at the bottom of the groove, then Tighten the screws.
2. Needle and sewing material: Generally use the 18th needle, sewing all kinds of rubber shoes and edging shoes and other thinner type 14-16 needles, sewing all kinds of shoes and canvas and other thicker with 18th needle.

8. Soto position adjustment:

(Many people will not be able to draw the bottom line, the reason is that the position is misplaced) When the is off-line, the tail of the must be aligned with the needle slot, the difference is a lot, is the position of the Wrong, it is necessary to make adjustments when not in time, loosen the live block and the tie rod link screw, move the lever so that the tail of the is aligned with the needle groove, and then tighten the screw.

9. Adjustment of the needle bar up and down:
During the needle movement phase, the needle eye hole should be aligned with the plane of the bottom plate, otherwise it should be adjusted by loosening the screw on the small connecting rod shaft and moving the needle bar to the correct position and then tightening.
